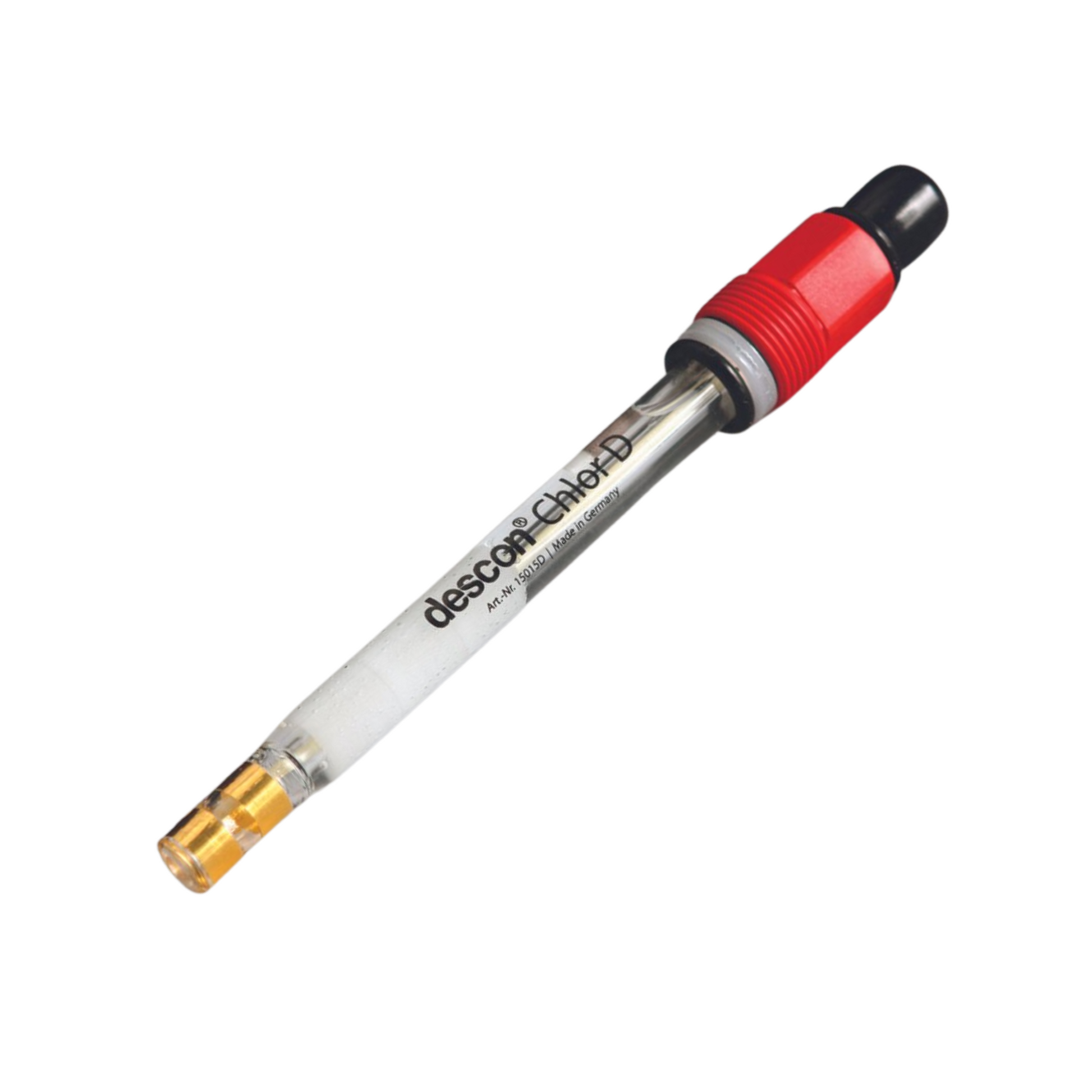

Descon Chlorine duplex sensor potentiostatic 15015D

Dubbele gouden combinatie-elektrode voor meting van vrij chloor, chloordioxide of ozon

• Shaft material: glass
• Length of shaft: 120 mm
• Measuring electrode: gold, upper ring
• Counter electrode: gold, lower ring
• Reference system: Ag/AgCl/ total KCl with salt stock
• Diaphragm material: sintered ceramics
• Measuring range: according to the used measuring amplifier
• Temperature range: -5 to 70 °C
• Max. working pressure: 8 bar at 20°C (pressure compensation via diaphragm)
• Mechanical connection: S8 threaded plug head
• Electrical connection: M12 screw connection (male)
